Nilo® 42 (Also known as Alloy 42, Invar 42, UNS K94200, UNS N94100, Dilaton41, FeNi36, 64FeNi) is an iron-nickel controlled expansion alloy containing 42% nickel with a low and nominally constant coefficient of thermal expansion in the 20°C (85° F) range up to about 300°C (570 °F). Nilo® Alloy 42 is extensively used in the oil and gas, pharma, medical, electronics, automotive industries as well as many other precision engineers in various applications including bi-metal thermostat strips, thermostat rods, electronic tubes, glass to metal and ceramic to metal seals.

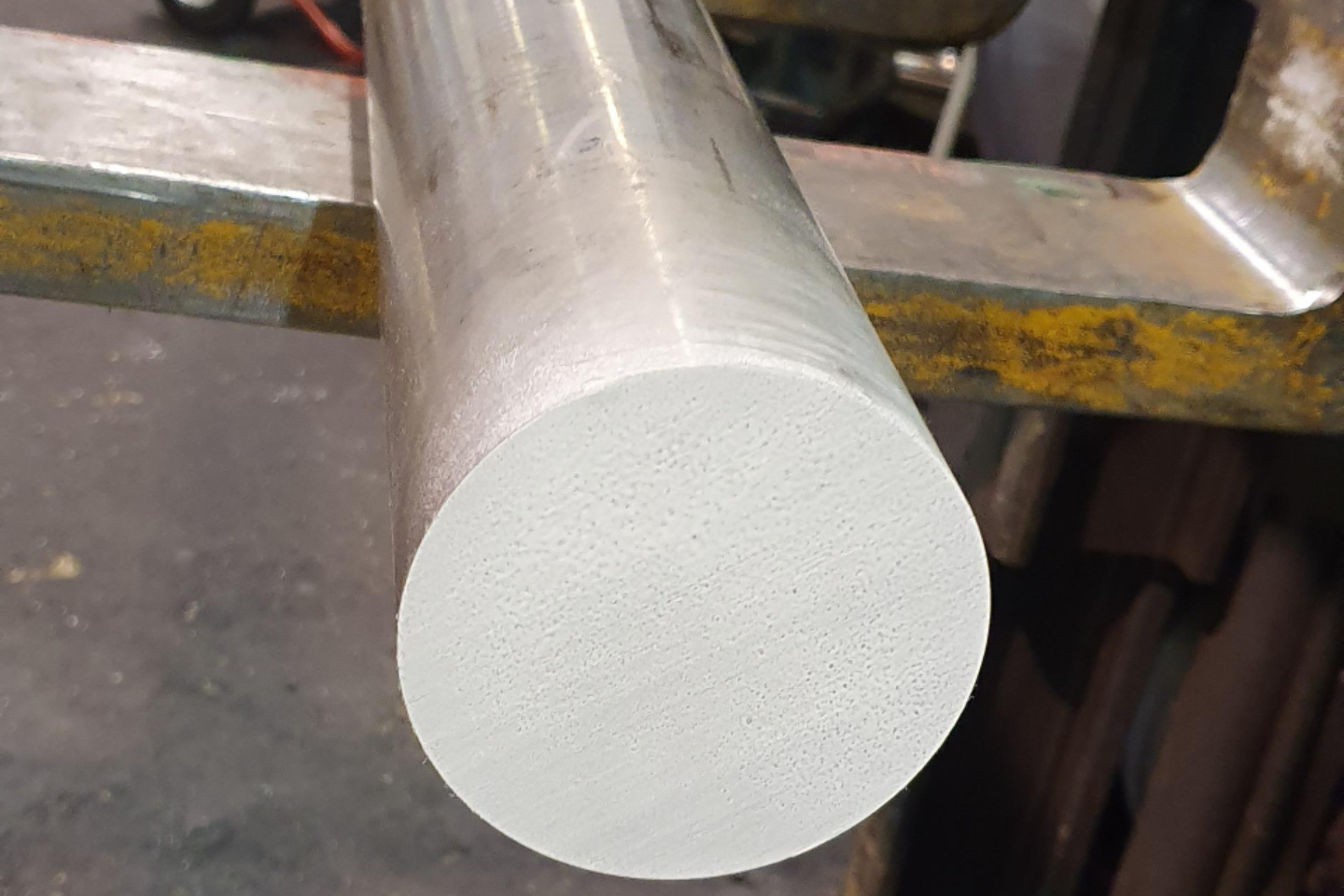

We hold a large range of Nilo® Alloy 42 stock in bars from 2inch right up to 10inch for immediate international dispatch. We also supply Nilo® 42 in wire, plate, sheet & strip. Where required we offer a cutting and drilling service to supply you with material to your specification and requirements. We have no minimum order requirement on Alloy 42 orders. All our metal is European produced material.
Nilo® 42 or Ni 42 is also known technically as:
- UNS: K94100
- ASTM F29
- ASTM F30 Bar and Sheet
- SEW 385 Bar, Sheet,
- DIN 17745
- AFNOR NF A54-301
- Werkstoff Nr. 1.3917
- B753 Sheet
Colour Code:
If you require a quote for your Nilo42 requirements please contact us on liamvickers@impactirl.ie. We will be more than happy to reply as soon as possible with a quote and also to answer any questions you may have relating to our Nilo42 materials and shipping times.
Related Specifications
| UNS | WR No | SEW | ASTM | DIN | AFNOR | Trade Name |
|---|---|---|---|---|---|---|
| K94100 | 1.3917 | 385 | F 30 | 17745 | NF A54-301 | Nilo 42 |
Typical Chemical Analysis
| Ni | Cr | Mn | P | S | Cr | Si | Al | Co | Fe |
|---|---|---|---|---|---|---|---|---|---|
| 42 | .05 | .80 | .025 | .025 | .250 | .030 | .02 | .05 | Bal |
Typical Mechanical Properties
| Yield Strength (.2% Offset) | Tensile Strength | |||
|---|---|---|---|---|
| psi | Mpa | psi | MPa | |
| 36,000 | 250 | 71,000 | 490 | |
Shapes & Sizes
Rounds (mm) Dia| Nilo 42 Form | Size from | Size to |
|---|---|---|
 Nilo 42 Bar |
25.4mm dia 1 inch dia |
300mm 11.81 inch dia |
 Nilo 42 Plate |
4mm | 400mm |
 Nilo 42 Sheet |
0.025mm | 3.175mm |
Beneficial Properties of Nilo 42
Durability: Very strong performance and toughness
Dimensional Stability: -100OC and 260OC
Flexibility: Easy to Machine. V very good weldability and workability
Near Zero: Coefficient of linear thermal expansion
Disclaimer
All data provided is for information and guidance only. Information above is not for design purposes and comes without warranty or guarantee with respect to the subject matter or fitness for purpose.
