Nilo® Alloy 42

Nilo® 42 (Also known as Alloy 42, Invar 42, UNS K94200, UNS N94100, Dilaton41, FeNi36, 64FeNi) is an iron-nickel controlled expansion alloy containing 42% nickel with a low and nominally constant coefficient of thermal expansion in the 20°C (85° F) range up to about 300°C (570 °F). Nilo® Alloy 42 is extensively used in the oil and gas, pharma, medical, electronics, automotive industries as well as many other precision engineers in various applications including bi-metal thermostat strips, thermostat rods, electronic tubes, glass to metal and ceramic to metal seals.

Colour Code:
Colour Code
This product appears in:

Request More Info Get a Quote Call Us Email Us

If you require a quote for your Nilo Alloy requirements please contact us on liamvickers@impactirl.ie. We will be more than happy to reply as soon as possible with a quote and also to answer any questions you may have relating to our Nilo materials and shipping times.

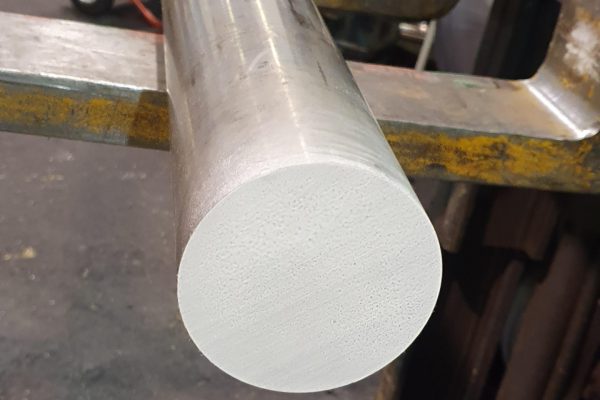

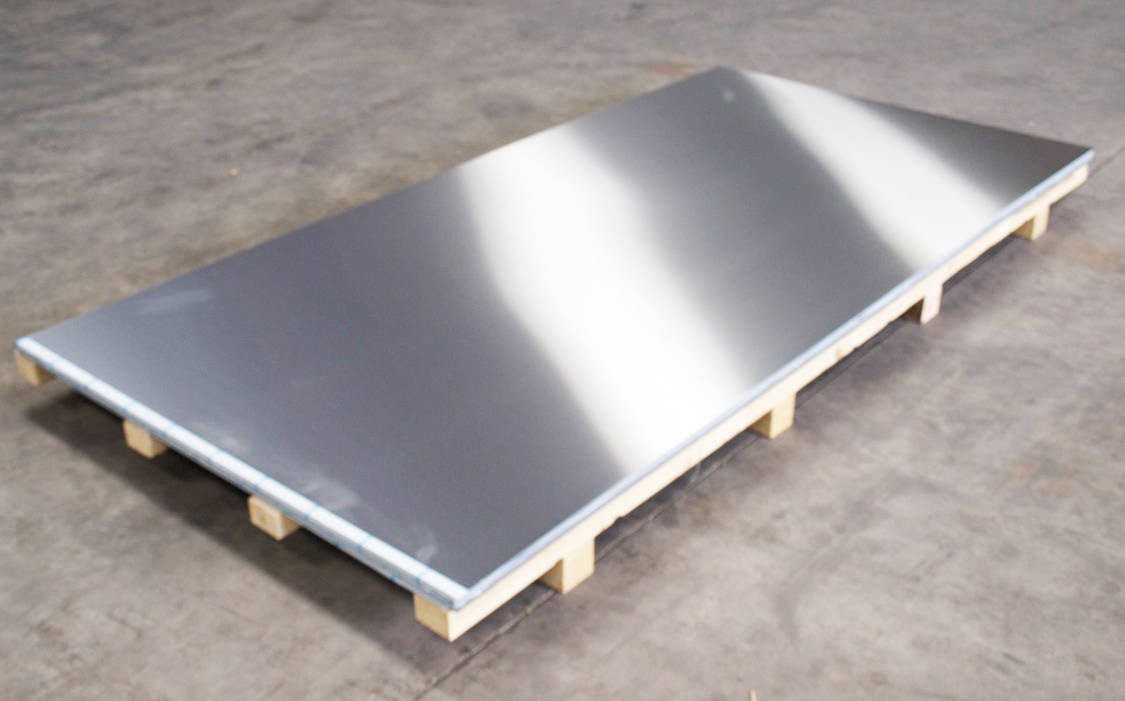

We hold a large range of Nilo® Alloy 42 stock in bars from 2inch right up to 10inch for immediate international dispatch. We also supply Nilo® 42 in sheet. Where required we offer a cutting and drilling service to supply you with material to your specification and requirements. We have no minimum order requirement on Alloy 42 orders. All our metal is European produced material.

Nilo® 42 or Ni 42 is also known technically as:
  • Alloy 42
  • UNS: K94100
  • ASTM F29
  • ASTM F30 Bar and Sheet
  • SEW 385 Bar, Sheet,
  • DIN 17745
  • AFNOR NF A54-301
  • Werkstoff Nr. 1.3917
  • B753 Sheet
Beneficial Properties of Nilo 42

Durability: Very strong performance and toughness
Dimensional Stability: -1000C and 2600C
Flexibility: Easy to Machine. Very good weldability and workability
Near Zero: Coefficient of linear thermal expansion

Rounds (mm) Dia
25.40
50.80
63.50
76.20
82.55
88.90
101.60
114.30
127.00
133.35
146.05
152.40
165.10
177.80
203.20
215.90
222.25
235.00
300.00
Rounds (inch) Dia
1
2
2 1/2
3
3 1/4
3 1/2
4
4 1/2
5
5 1/4
5 3/4
6
6 1/2
7
8
8 1/2
8 3/4
9 1/4
11 3/4
Nilo 42 Form Size from Size to

Nilo 42 Bar		 25.4mm dia
1″ dia		 300mm
11.81″ dia

Nilo 42 Sheet		 0.025mm
0.0009″ 		3.175mm
0.125″
UNSWR NoSEWASTMDINAFNORTrade Name
K941001.3917385F 3017745NF A54-301Nilo 42
NiCrMnPSCrSiAlCoFe
42.05.80.025.025.250.030.02.05Bal
Yield Strength (.2% Offset)Tensile Strength
psiMpapsiMpa
36,00025071,000490
Disclaimer
All data provided is for information and guidance only. Information above is not for design purposes and comes without warranty or guarantee with respect to the subject matter or fitness for purpose.
